  • Product description: CA Series

CA Series



Product Introduction:

70% of the device installed using automatic SMT technology,So we can fully guarantee the standard of the product.CA series from parts to the whole assembly are based on the assembly line production operations.Improve production efficiency,reducing the chance of human error,product consistency while allowing better protection.

Quality and stability:

CA series of products using military production of double-sided fiberglass PCB as the substrate, it has a very good stability and resistance to deformation characteristics.CA series of material suppliers are ISO certified and qualified suppliers.CA series from raw materials to finished products must pass of OQC, PQC, MQC, TQC, RQC, FQC, OQC inspection to the factory,and each procedure are using computer test, 99.9% out of the box to ensure that the pass rate.This strict process management and quality control, the purpose is to let you use every CS Audio products are reliable,consistent.So that each product model that you use are making the same sound.

Safe and durable:

CA series all full power after 8 hours aging test,ensure maximum seek and find to lose a QC inspection recessive defective products.Each CA series products are in strict accordance with CCC standards complete safety test,so CA series is the product of choice for important occasions and government projects.

Wide range of applications:

CA series of entertainment projects, advanced multi functional conference engineering, touring wise choice.

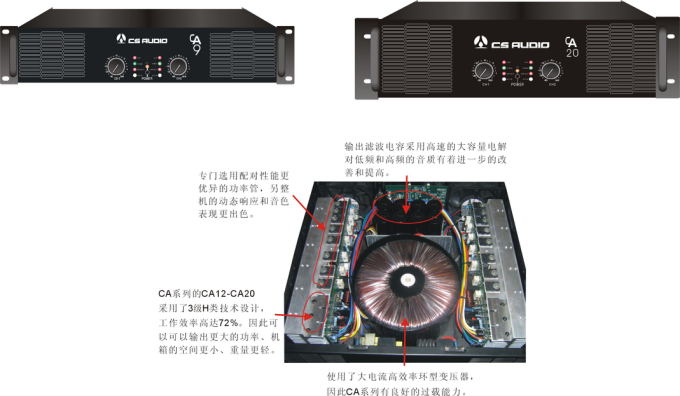

Specially selected paired performance superior power management, so that the whole dynamic response and better sound performance.

CA Series CA12-CA20 using 3 H-grade class technical design, efficiency up to 72%, it is possible to output a smaller more power, chassis space, lighter weight.

Output filter capacitor using high-speed large-capacity electrolytic low and high frequencies sound quality has further improved and enhanced.

Use a high-current high-efficiency toroidal transformer,and CA series has a good overload.

CA9

CA12

CA18

CA20

8Ω

580Wx2

850 Wx2

1150 Wx2

1350 Wx2

4Ω

950 Wx2

1275 Wx2

1725 Wx2

2050 Wx2

2Ω

1350 Wx2

1700 Wx2

2300 Wx2

2700 Wx2

Bridge

1900W

2550W

3450W

4050W

Bridge4Ω

2800W

3400W

4600W

5400W

S/N Rate

>103dBA

>105dBA

>105dBA

>105dBA

Sensitivity

0.775V/1V/1.4V

Circuit Level

2H

3H

3H

3H

THD+N

<0.05%

<0.10%

<0.10%

<0.10%

Damping factor

>200

>250

>250

>250

Slew Rate

>15v/us

Input impedance

20k ohm/10k ohm

Voltage Gain

35dB

37dB

38dB

41dB

Cooling

front to rear air flow

Input Connection

Link 3-pin XLR /Link TRS3/4"

Output Connection

Binding posts& Speakon

Function

DC/Short circuit/TEMP/Clip limit/Soft star

Amplifier Dimension(mm)

483x496x130

G.W.

27.9kg

36.5kg

39.5kg

41kg
