Amplifier

  • PC820
  • PC820
PC820PC820

PC820

  • provides independent switches for working lamp socket (BNC)
  • provides a great convenience for the maintenance or the test machine.
  • achieve independent sequential switching output power supply and control of the machine.
  • Product description:


PC820

Operating technique

A. PC820 power supply sequencer,use of multi output socket work by the microcomputer control, to achieve independent sequential switching output power supply and control of the machine.

B. PC820 after all the power output can be connected with the "channel switch" access key, in a timely manner through the output of any one power supply to facilitate the handling of a single equipment accident.

C. PC820 when in on-line mode the machine is very convenient, as long as the control signal of each line will connect you can, after connecting but must pay attention, be regarded as the power switch timing power supply controller auxiliary engine must hit "OFF" position, otherwise it will cause out of control.

D. PC820 provides independent switches for working lamp socket (BNC).

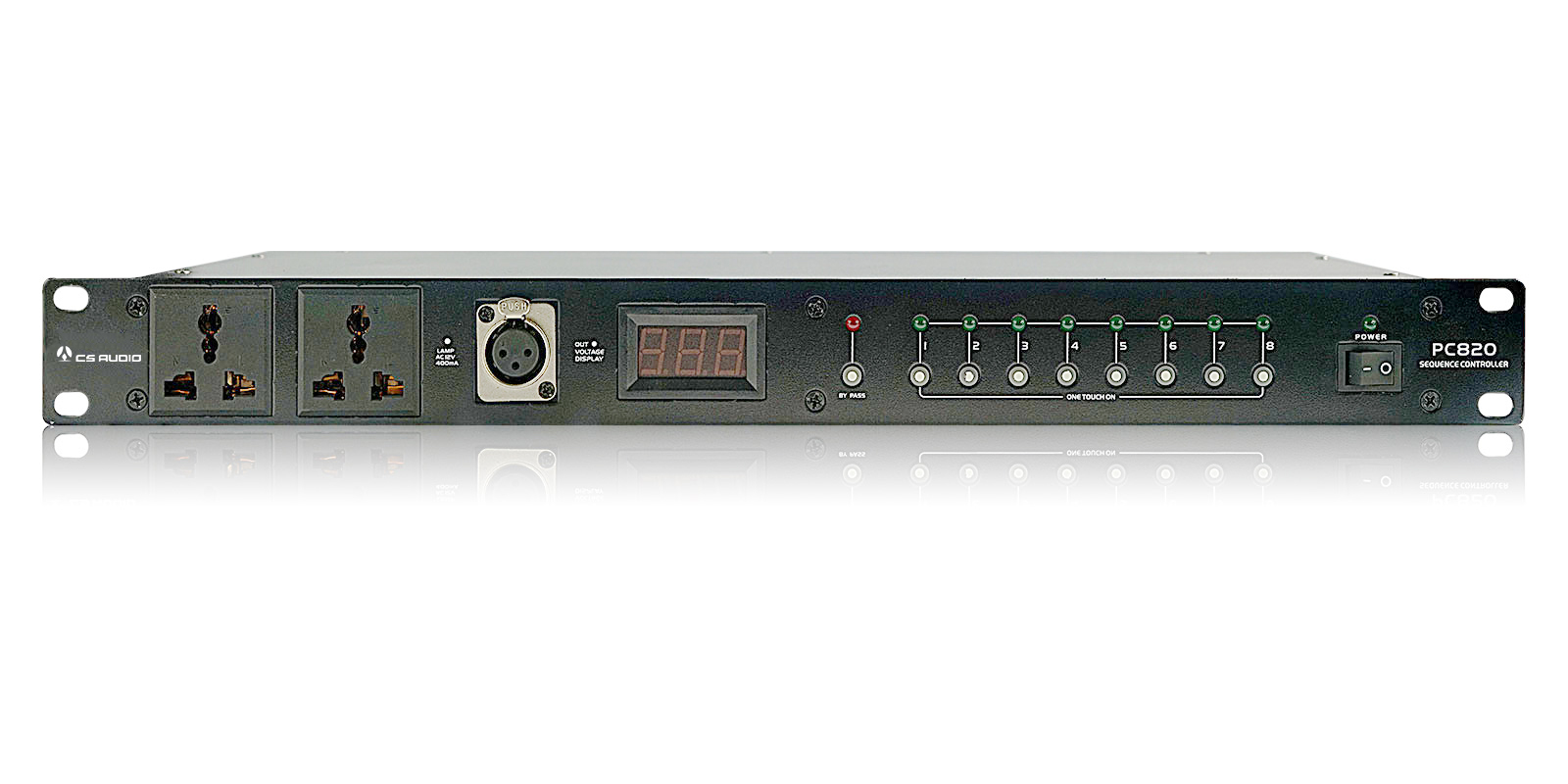

E. The front panel of the PC820 is also provided with two maintenance auxiliary output sockets, which provides a great convenience for the maintenance or the test machine.

Technical Specifications

Channel number

8

Adjuvant channel number

2

Loading per channel

220V/15A,3300W/Channel

Sequence time per step

1second

Link

ALLOW

Lamp voltage

AC/12V

Post-positions lighting indicator

Sequencer on/of-lock switch

Control

Lamp-on switch ,Bypass-button

Link cable

3-core,microphone

Indicator

Power/Channel on/Bypass

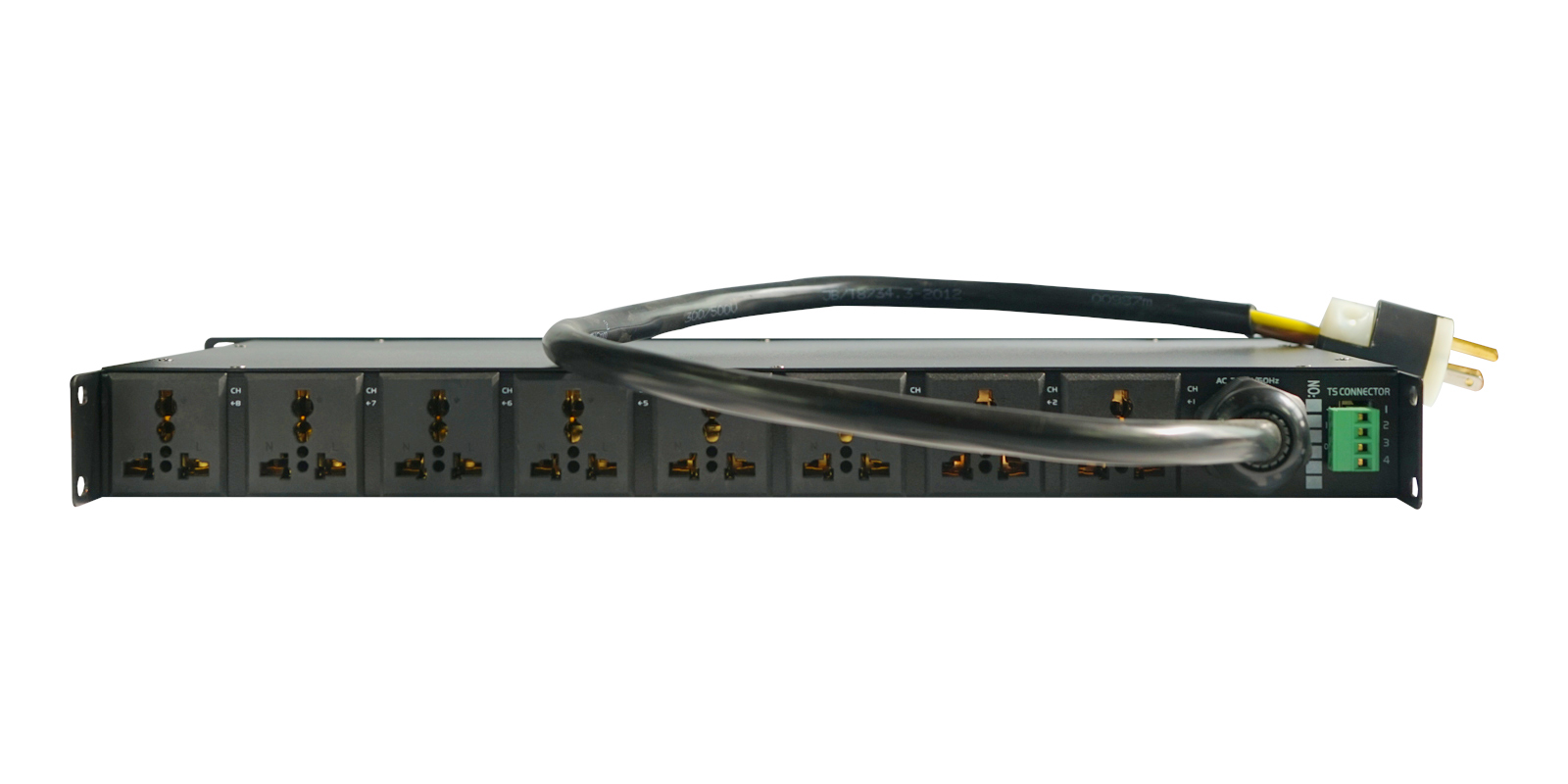

Output connector

Wipro standard three wire AC Connector

Control signal link connector

TRS

Power

220V/50Hz-60Hz,standard 3wire.Grounded wire is needed

Dimension

483mmx44mmx300mm

Weight

10Kg

Warrant

18momths
