Amplifier

  • MA Series 4CH power amplifier
  • MA Series 4CH power amplifier
MA Series 4CH power amplifierMA Series 4CH power amplifier

MA Series 4CH power amplifier

  • Short circuit protection
  • Over load protection
  • DC protection
  • Output of automatic limit
  • Product description:

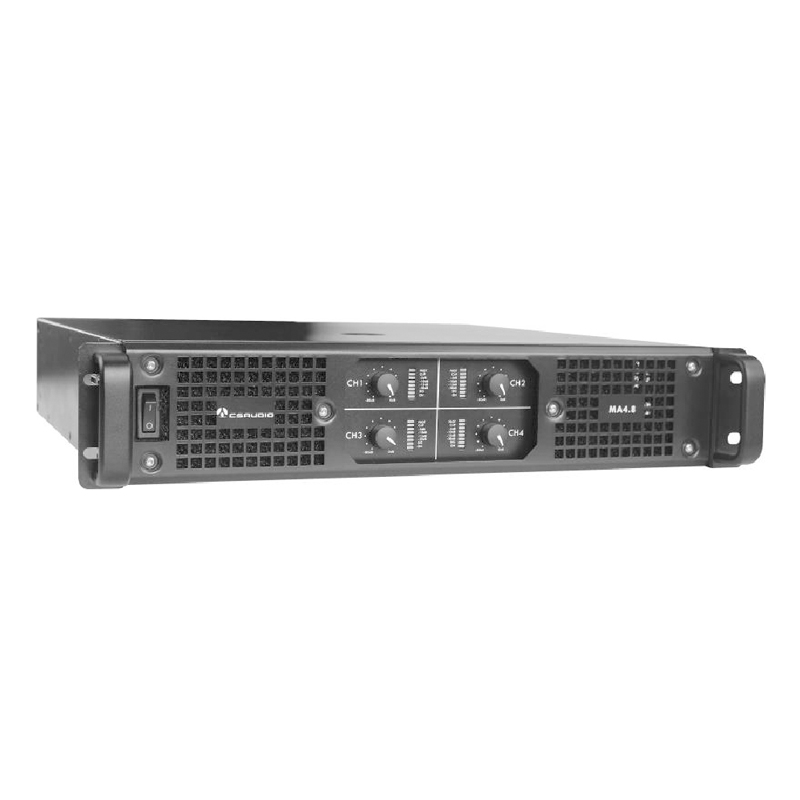

MA Series 4CH power amplifier

Features
 MA series use a very mature 2 H class switching circuit topology
 XLR input connectors and link connectors
 SpeakON NL4 output connectors
 Input sensitivity selector on rear panel (32dB/1v/0.775v)
 Link mode selector on rear panel(stereo / bridging /parallel)
 Channel independent alarm indicators(temperature/protection/clip)on front panel
Superior electronic components
 As the CS audio marketing king, MA series only use the components from the market which is considered most durable and superior.
 Adopt imported ONSEMICONDUCTOR transistors 0302/0281, professional customized audio button-type wires, which can prevent the transportation loss.
 Long-lived capacitors features high heat proof, high frequency and low resistance, pursue quality regardless of costs.
 MA series amplifiers adopt high-quality pure copper transformer, electromagnetic loss and temperature rise is very low by using imported silicon steel sheet core.
Tone features
 The high frequency clear, warm tone
 Mid frequency warm and full, voice full of charm
 The low frequency bass heavy and powerful, moderate sense of forcefulness
Multiple protections
 Short circuit protection
 Over load protection
 DC protection
 Output of automatic limit



4 Channel Technical Specifications


MODE

MA4.4

MA4.6

MA4.8

MA5.0

8ΩStereo*

400Wx4

600Wx4

800Wx4

1000Wx4

4ΩStereo**

600Wx4

900Wx4

1200Wx4

1500Wx4

8ΩBridge**

1200Wx2

1800Wx2

2400Wx2

2800Wx2

Amplifier Topology Category

Class AB

Class H

Frequency response

20 Hz – 20 kHz(0.5~-1.5dB)

THD

<0.05%

S/N Rate

>90 dB

Damping factor

>400(100Hz)

Resolution

>70 dB

Slew Rate

>10V/μs

Input Sensitivity

0.775V/1V/1.4V

Voltage gain

32dB

34dB

36dB

38dB

Input impedance(unbal/bal)

10kΩ/20 kΩ

Cooling

Air flow from front to rear

protection

Soft start, DC, Short Circuit, Over load, Clip,Over Heat, Progressive Volume

Input

Balance XLR Male/Female

output

Binding Post NL4 Speakon

Panel Lights

Power,Signal VU, Clip, Protection

Front Panel Function

Power on, Volume control

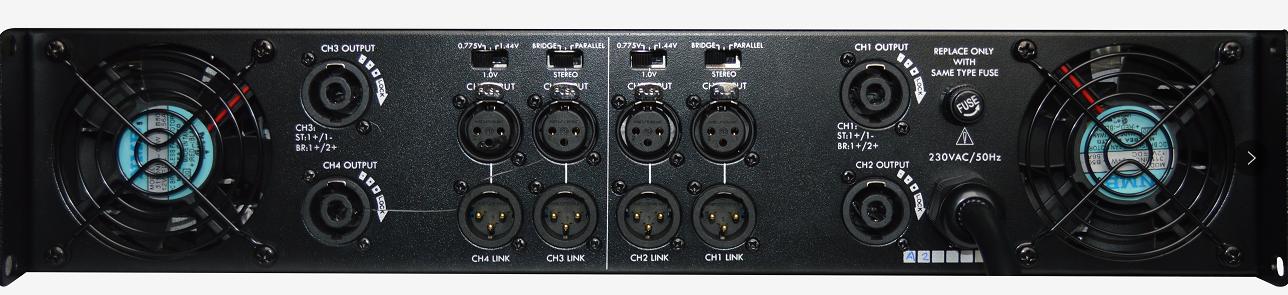

Rear Panel

StereoBridgeParallelInput Sensitivity

Power

Non-plug IEC Power Cord  AC230V/50Hz.±10%

Packing Dimension

570x560x145

G.W

24kg

24.6kg

25.2kg

30kg



Remark

1.*, The power is tested under EIA standard.

2. **, The power is tested under the condition of 40ms burst,1KHz sine wave and 1% THD.

3, the power test marked with’**’can’t be used the power sine wave signal directly to test, or the DC insurance and other components may be broke
