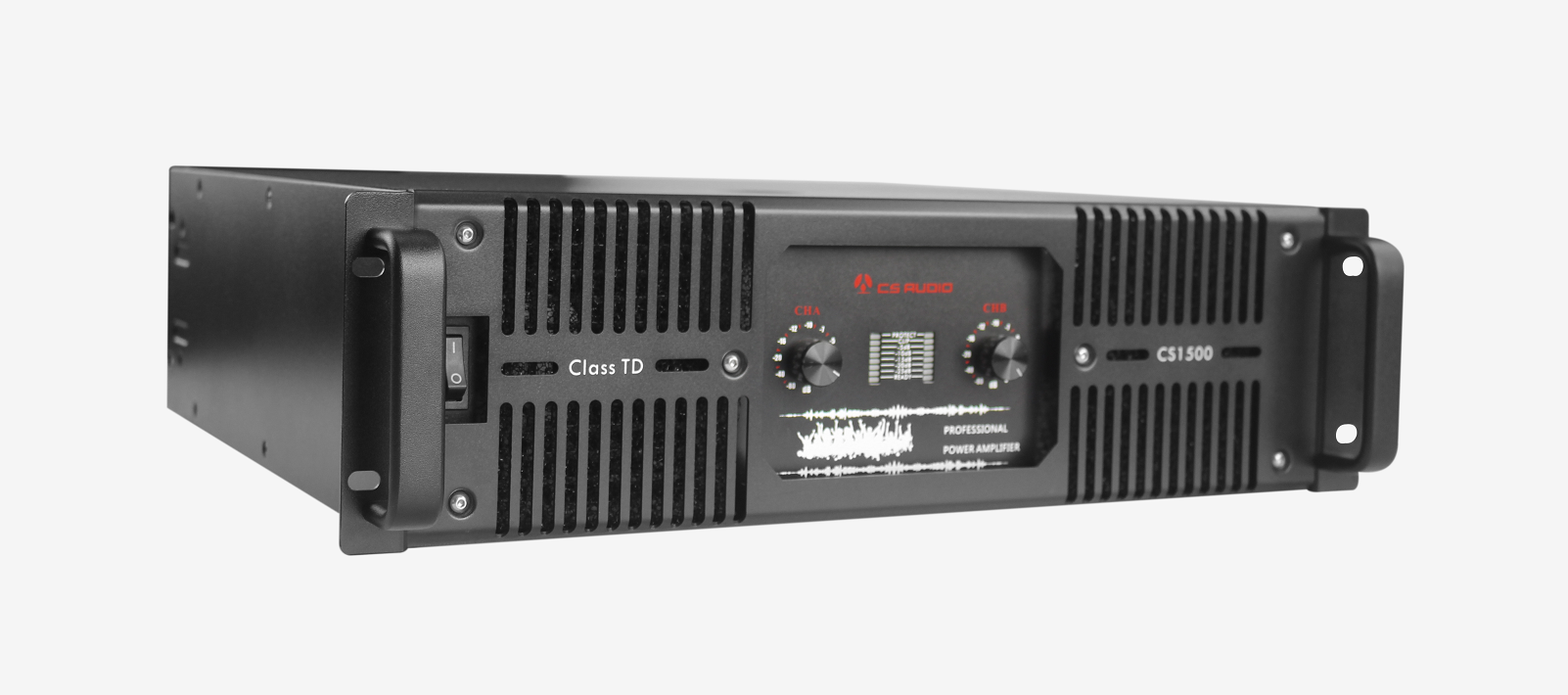

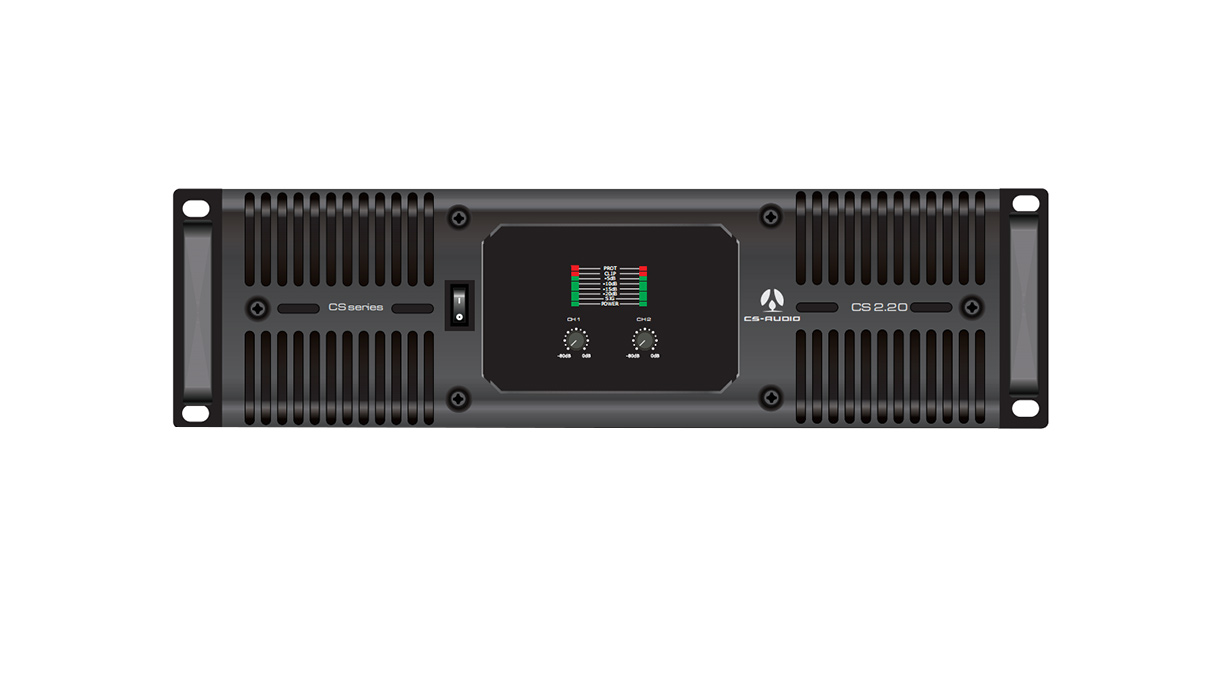

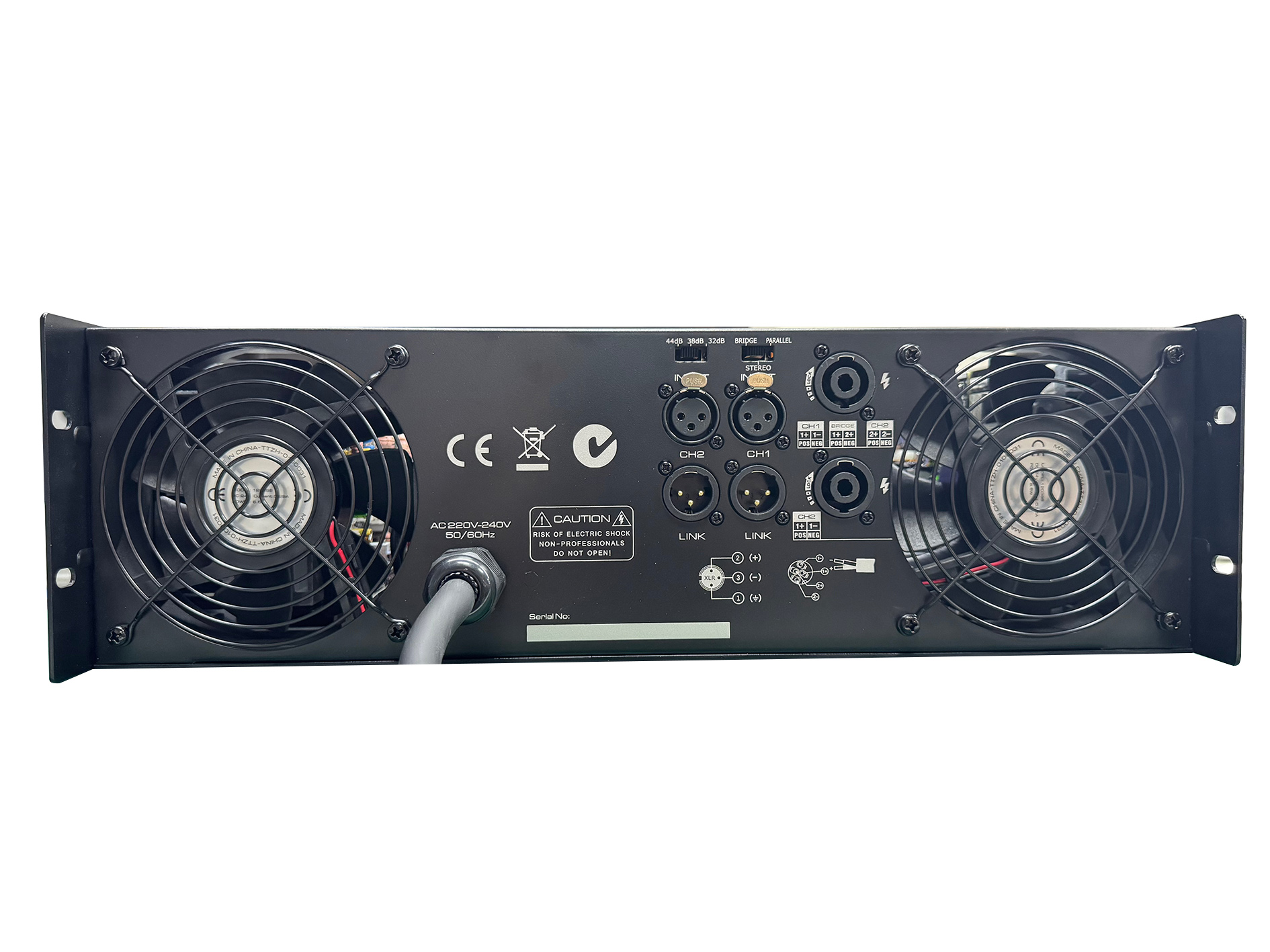

CS Series Class TD power amplifier

CS SERIES the Class TD circuit, it can reach the high efficiency of Class D and ensure the perfect sound quantity and powerful output of Class AB.

Nowadays, it is common to see different kinds of power amplifiers on the basis of different output circuitry. Usually, it is divided into Class A , AB, D, H , G , and TD and so on. In the field of professional power amplifiers, stability is vital as well as sound quality.

Class AB is able to achieve 50% efficiency. But class H, which is upgraded from Class AB, employing the technology of hierarchical power supply can improve the efficiency to 65%. In this way, 1/ 3 efficiency still could not be made full use of.

However, based on the design ideas of class H, another design idea comes out , which is employing class D, namely Modulated power supply to drive the out put stage of class AB so as to reach the same efficiency as class D. Actually, it is surprise to get efficiency about 85% and tone quality as well as that of cl ass AB in the practical application.

Class AB Consuming Class 3H Consuming Class TD Consuming

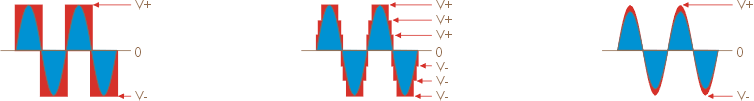

As below , it is the diagrammatic sketch that describes heat dissipation condition of Class AB, H and I. Red area indicates information of heat dissipation and efficiency. Bigger the red area is, more heat dissipation and lower efficiency it will be.But class dignifying power, with such high efficiency and great power valve, which could work well under low pipe pressure without being burnt out by over heating, makes safety of ultra-high-power products under control. Meanwhile, it improves load capacity, which is also very important for professional power amplifiers. Taking all these advantages into consideration, TD series indicate better quality of professional power amplifiers.

Technology standards: All AI and SMD production process, highly improve the readability and consistency.

Market Positioning: CS series is designed for high class sound reinforcement, ensured by its strong and powerful output power at 8/4/2 ohms.

Low noise: No noise when in static mode. When installed in room, no noise worries to enjoy the music.

Good sound quality: Thick LF, sweet MF and fine HF. Suitable for long-term music without uncomfortable feelings

High Efficiency: Output high efficiency, good cooling, Energy saving, Environmental

Soft protection: Work even at low resistance and over heat. Continued output, stable performance and reliable work.

Small Size: 3U height, small depth, convenient to install in rack and space saving.

2 Channel Specifications

Specification		CS1000	CS1300	CS1500	CS1800	CS2000
Rated power (20Hz-20KHz, <0.1%THD)	8Ω Stereo	1000Wx2	1300Wx2	1500Wx2	1800Wx2	2000Wx2
	4Ω Stereo	1500Wx2	1950Wx2	2250Wx2	2700Wx2	3000Wx2
	2Ω Stereo	/	2925Wx2	3375Wx2	4050Wx2	4500Wx2
	8Ω Bridge	1x3000W	1x3900W	1x4500W	1X5400W	1X6000W
	4Ω Bridge	/	/	/	/	/
Protective system	DC protection	V
	Short circuit protection	V
	Overheat protection	V
	Over load protection	V
	Soft start protection	V
Frequency response（1W8Ω Stereo）		20 Hz – 20 kHz(0.5~-1.5dB)
Input Sensitivity		26dB/32 dB/41dB
Working mode		Stereo/Barallel/Bridge

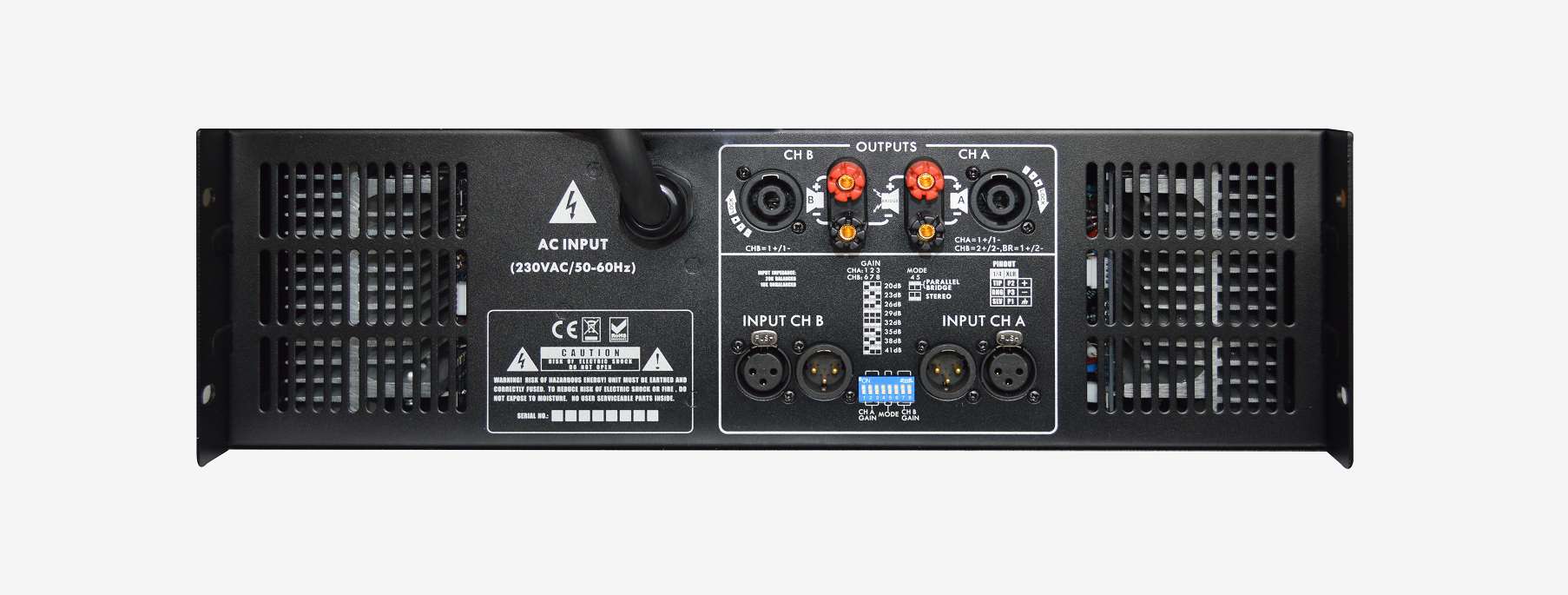

Connecting terminal	Input	XLR Male/Female
Connecting terminal	Output	Output socket
Input impedance	Balance	20 KΩ	20 KΩ	20 KΩ	20 KΩ	20 KΩ
Input impedance	Unbalanced	10 KΩ	10 KΩ	10 KΩ	10 KΩ	10 KΩ
Crosstalk attenuation（20HZ-20KHZ,rated power 8Ω）		>60dB	>60dB	>60dB	>60dB	>60dB
S/N Rate（rated power 8Ω）		>90dB	>90dB	>90dB	>90dB	>90dB
Damping factor（1kHz&8Ω）		>400	>400	>400	>400	>400
THD（8Ω & 20Hz-20KHz）		<0.1%	<0.1%	<0.1%	<0.1%	<0.1%
Slew Rate		>25V/uS	>25V/uS	>25V/uS	>25V/uS	>25V/uS
Output circuit		Class TD	Class TD	Class TD	Class TD	Class TD
Power waste（Full channel 4Ω, 1/8RMS/230V）		2.5A	6.0A	2.3A	5.7A	7.2A
Installation		3U	3U	3U	3U	3U
Carton dimension(WxHxD)		560x545x180mm	560x545x180mm	560x545x180mm	560x545x180mm	560x545x180mm
Net/Weight		28Kg	29Kg	30Kg	31Kg	32Kg

The inner and outer package size, net weight and gross weight reflected in the data are for reference only, and the exact value is subject to the label on the carton.
